16*2, 8-bit parallel, Character LCD Module, DGM1602-8036-2
DGM1602-8036-2 is a 16x2 Character dot Matrix LCD Display Module. It is known for high quality display effect with wide viewing angle and high contrast.
Product Description
16*2, 8-bit parallel, Character LCD Module, DGM1602-8036-2
DGM1602-8036-2 is a 16x2 Character dot Matrix LCD Display Module. It is known for high quality display effect with wide viewing angle and high contrast.
The module size is 80.0*36.0*13.0 mm (W*H*T) with 64.5*14.5 mm (W*H) viewing area. It accepts 8-bit parallel interface and 5V voltage. We have two display color options for DGM1602-8036-2: blue and yellow/green.
It is a perfect choice for copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
More details please click here
Specifications:
|
Part No |
DGM1602-8036-2 |
|
Resolution |
16*2 |
|
Module size (W*H*T) |
80.0*36.0*13.0 mm |
|
Viewing Area (W*H) |
64.5*14.5 mm |
|
Character size (W*H) |
2.9*5.15 mm |
|
Dot size (W*H) |
0.54*0.6 mm |
|
VDD |
5V |
|
Operating temp |
-20°C to 70°C |
|
Storage temp |
-40°C to 80°C |
|
Weight |
36g |

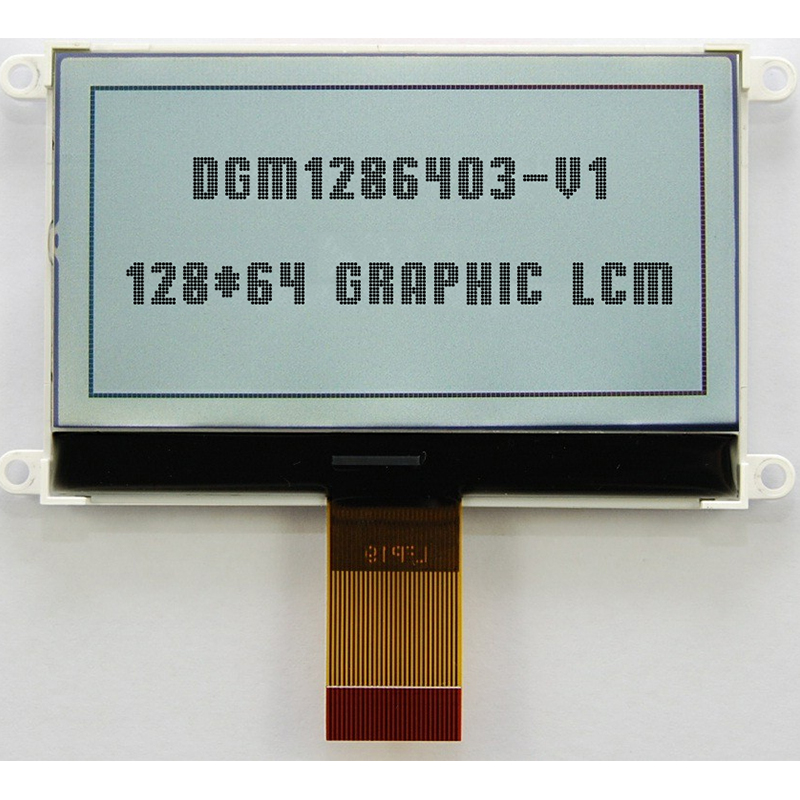

Detail Image:
