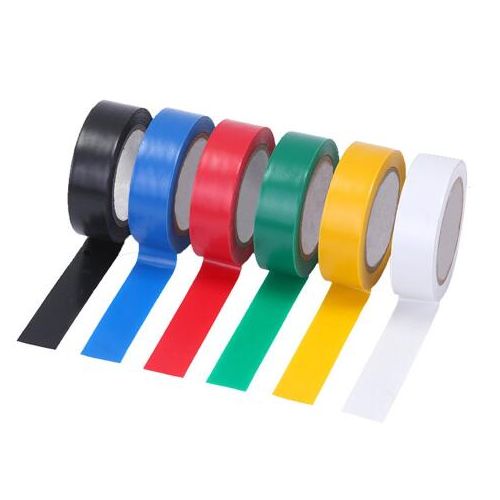

PVC Electrical Insulation Tape
PVC Electrical Insulation Tape
Product Description
PVC Electrical Wire Tape is designed for extreme temperature applications. This specialized pvc adhesive tape is crafted from a high-quality aluminum foil backing with a thickness of 2.0 mils and coated with a robust silicone adhesive.
Technical Data:
| Properties | Unit | Typical Data | Test Method | ||||
| TT-120 | TT-130 | TT-150 | TT-180 | TT-200 | |||
| Total Thickness | mm | 0.120 | 0.130 | 0.150 | 0.180 | 0.200 | ATSM D1000 |
| Tensile Strength | N/cm | 18 | 20 | 22 | 25 | 28 | ATSM D1000 |
| Elongation At Break | % | 160 | 180 | 200 | 220 | 250 | ATSM D1000 |
| Adhesion To Steel | N/cm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ATSM D1000 |
| Adhesion To Backing | N/cm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ATSM D1000 |
| Dielectric Breakdown Voltage | kV | 5.5 | 6.5 | 7.0 | 7.5 | 8.0 | ATSM D1000 |
The upwards data on this catalogue is typical value, only for reference, the actual product data is according to the actual test result.
Availability:
· Standard Length: 10m, 20m, 10yds, 20yds, 33m
· Standard Width: 18mm, 19mm
· Standard Diameter of Core : 32mm
Other sizes and cores are available upon request.
High temperature electrical tape feature:
• Superior Adhesion: Bonds effectively to silicone surfaces and other challenging substrates.
• Thermal Resistance: High temperature insulation tape maintains integrity in both cryogenic and extremely hot settings.
• Protective Properties: High voltage electrical tape resists flames, moisture, weather, UV degradation, and chemicals.
• Versatile Compatibility: Suitable for various surfaces, including curved and uneven areas due to its conformable nature.
• Enhanced Performance: Heat resistant insulation tape offers thermal conductivity for improved heating and cooling efficiency as well as heat and light reflectivity.
• Color Options: Available in multiple colors for identification and marking purposes.
• Longevity: With a shelf life of up to 36 months when properly stored.
